CAD/CAE Morphing

Reshape FE/CFD models using advanced, feature-based morphing
Requires no manual setup of control or deformable zones
Preserves assembly stack-ups and connector locations during morphing
Supports localized reshaping while freezing or maintaining critical cross-sections

What Does CAD/CAE Morphing Do?

The Morphing module in MeshWorks enables engineers to rapidly reshape and adapt existing FE and CFD models using feature-based deformation techniques. It eliminates the need for manual setup of morphing zones, offering intuitive region selection for localized or full-system adjustments. Recognized as a global leader in CAE morphing, MeshWorks delivers precise, scalable, and user-friendly capabilities that significantly reduce effort during design updates—ensuring continuity across complex assemblies while maintaining mesh integrity and performance accuracy.

Intuitive, Clay-Like Flexibility

Engineers can sculpt models as easily as shaping clay, enabling fast iterations with complete design freedom.

No Setup Required

Complex morphing operations can be performed instantly without predefined zones or control meshes.

High-Fidelity Transformation

Delivers morphing precision of up to 0.01 mm, ensuring exact source-to-target alignment.

Streamlined User Experience

A clean interface and minimal learning curve enable faster adoption and higher productivity.

Take a quick tour of CAD/CAE Morphing

Watch Overview Video Here

Features of CAD/CAE Morphing

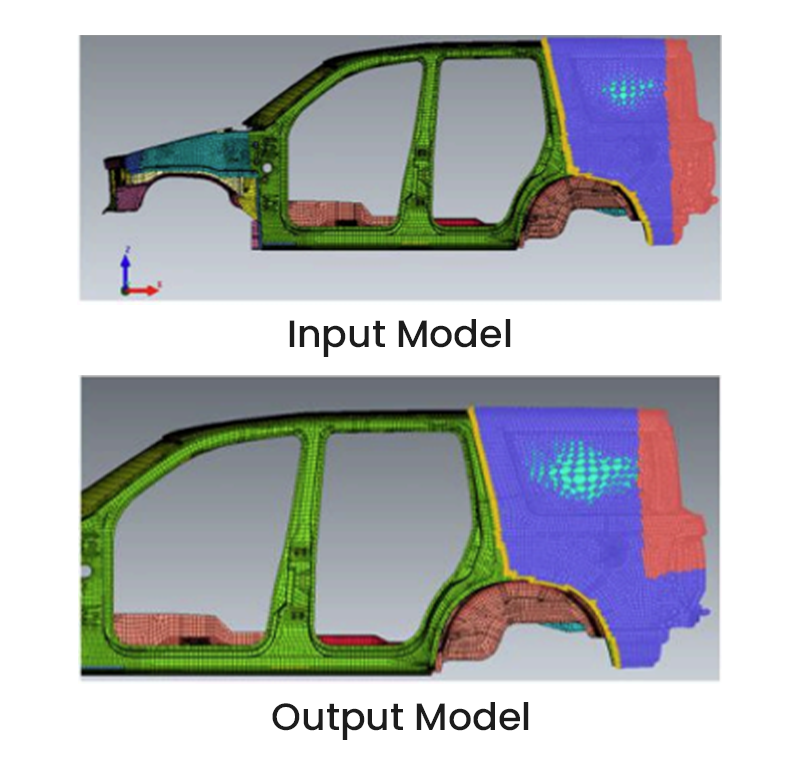

Control Block Morphing

Apply both low- and high-order deformation blocks to modify local or global shapes efficiently.

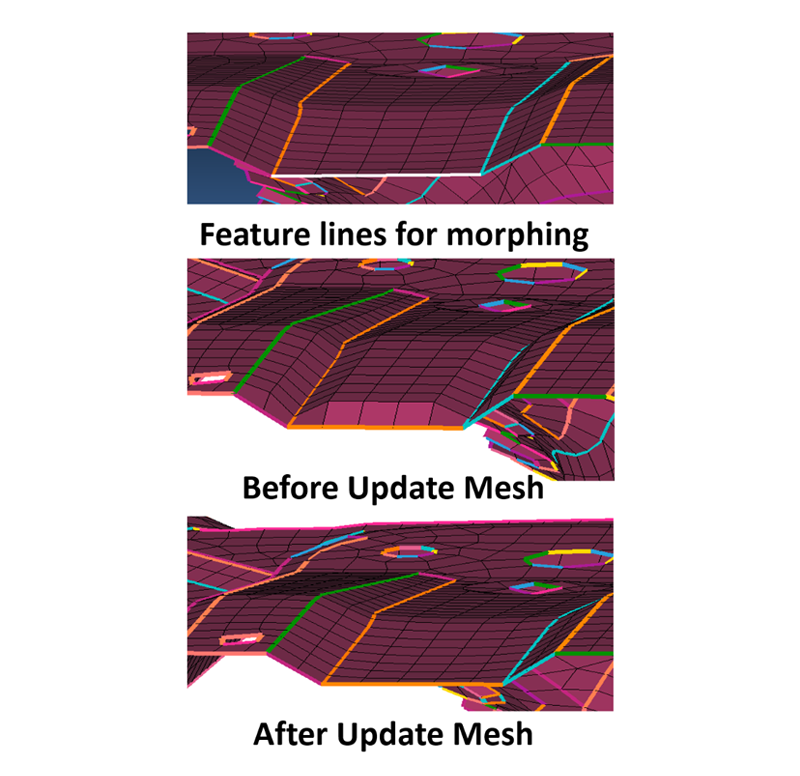

Freeform Morphing

Sculpt surfaces and features directly at the mesh level for advanced shape control without CAD.

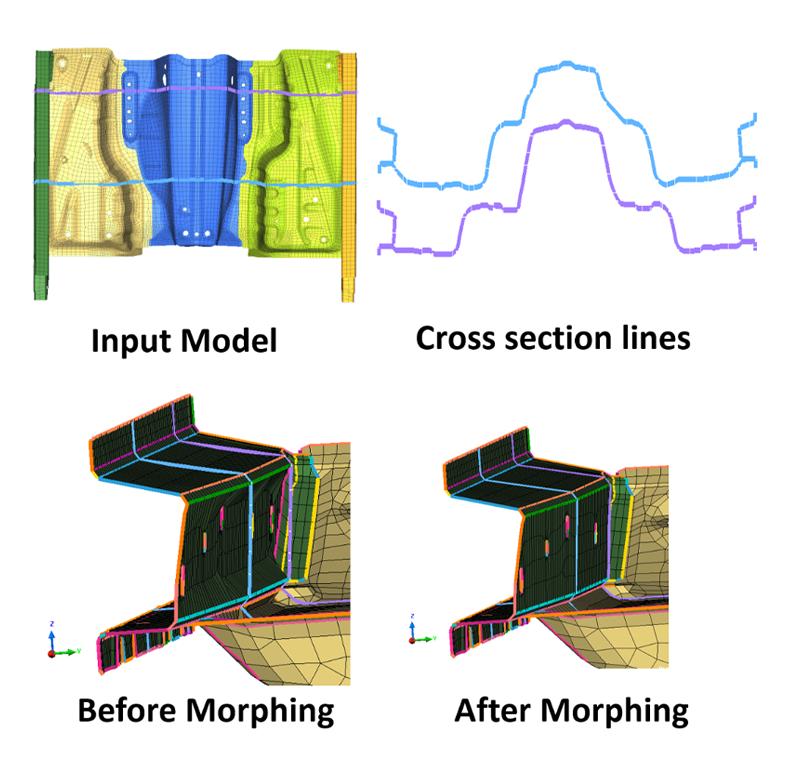

Pattern & Section Morphing

Replicate deformations across symmetric sections or repeated features for consistent updates.

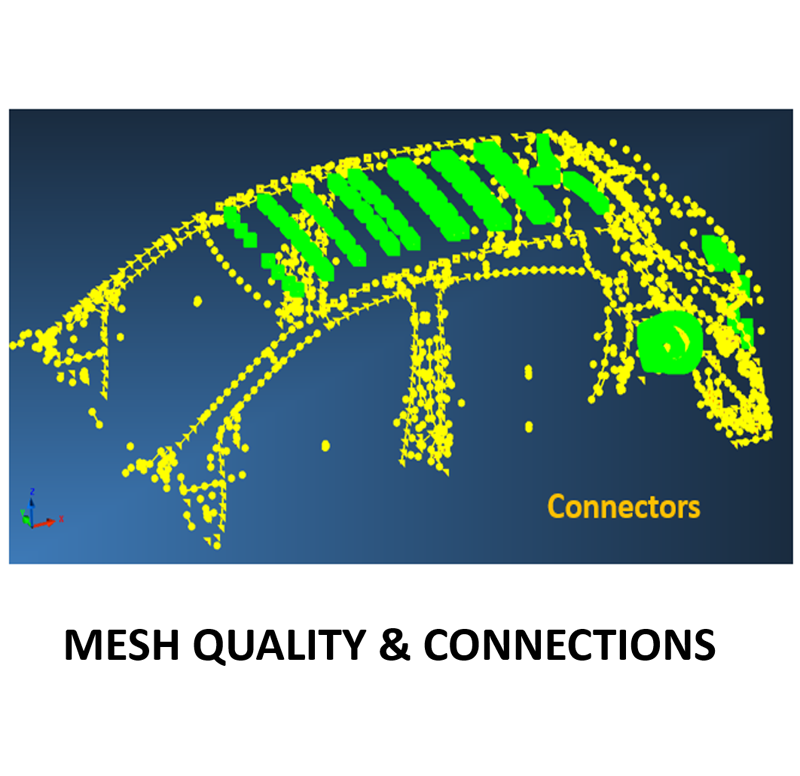

Connector Preservation

Automatically maintains bolts, welds, and adhesives during mesh deformation to retain assembly integrity.

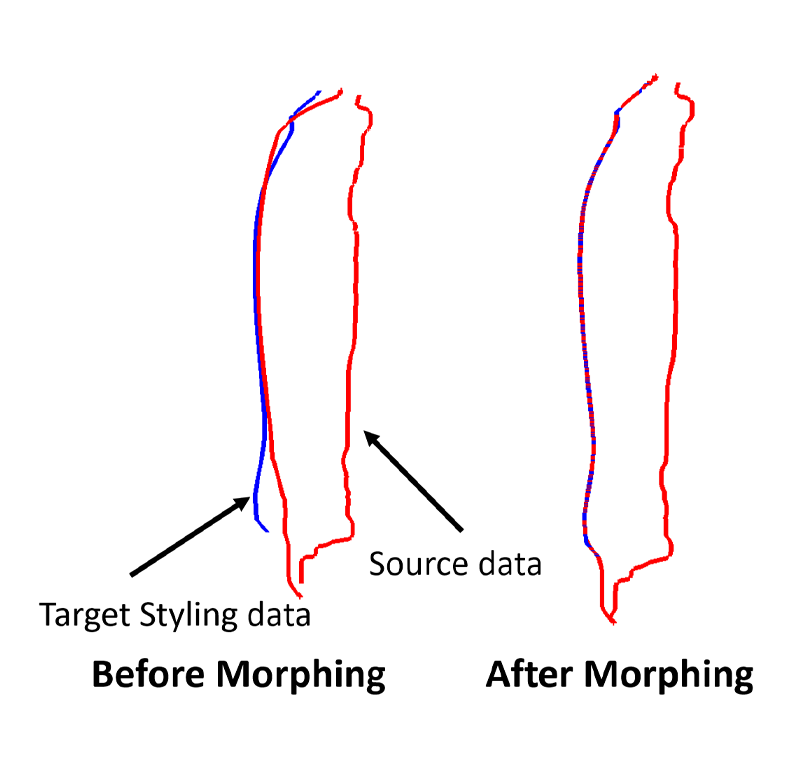

Precision Matching

Aligns model geometry to scanned or target shapes with accuracy within hundredths of a millimeter.

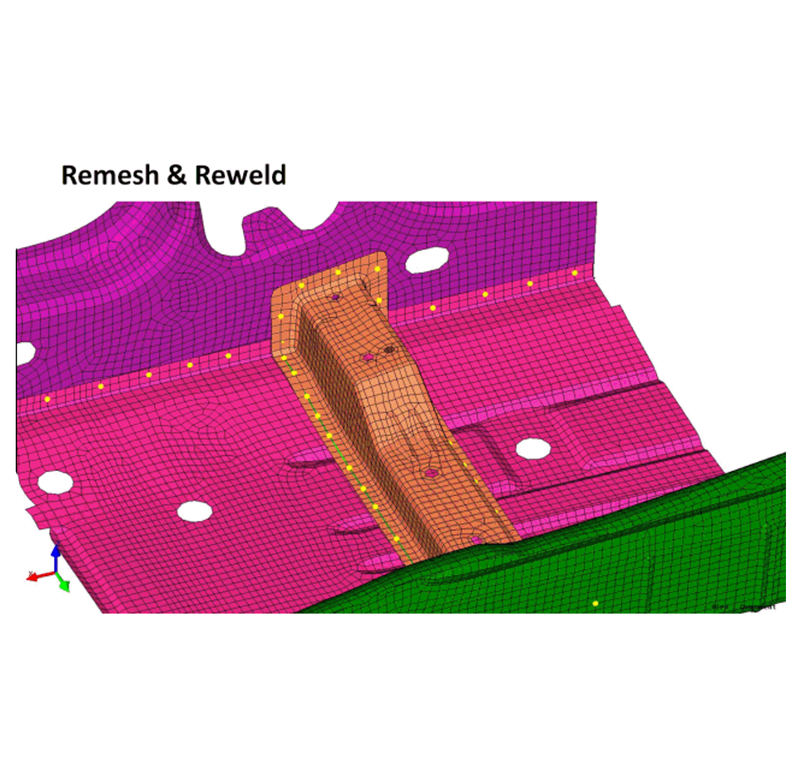

Automated Remeshing and Rewelding

Meshes morphed regions and regenerates connections like spot welds, bolts, and adhesives automatically.

Accelerated Simulation & Optimization Icon

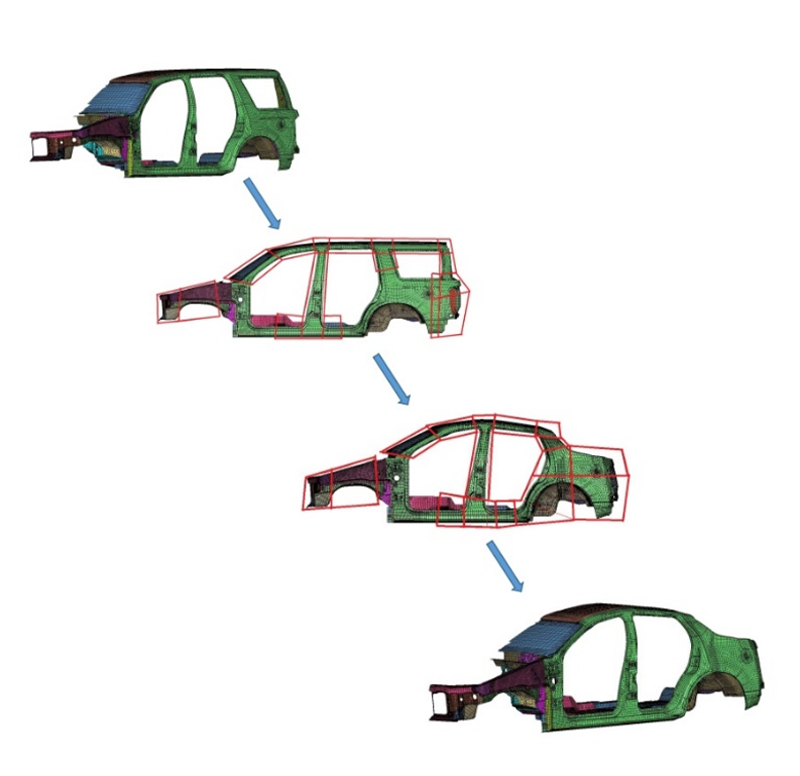

Feature-Based Morphing

Morph using only key feature lines and surfaces for localized, constraint-driven deformation.

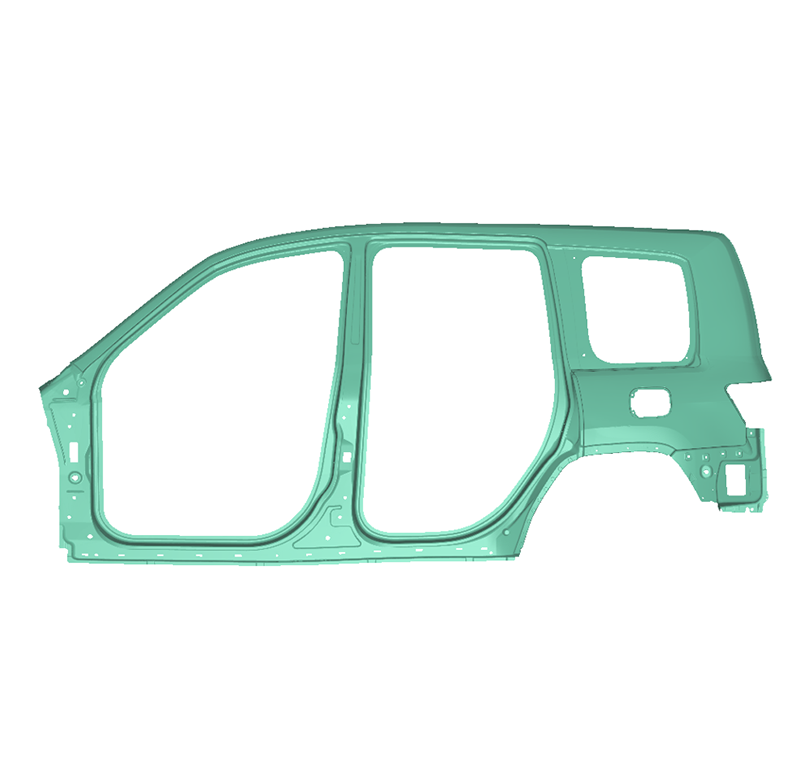

CAD/CAE Interoperability

Supports both mesh- and CAD-based morphing; also enables reverse CAD generation from mesh data.

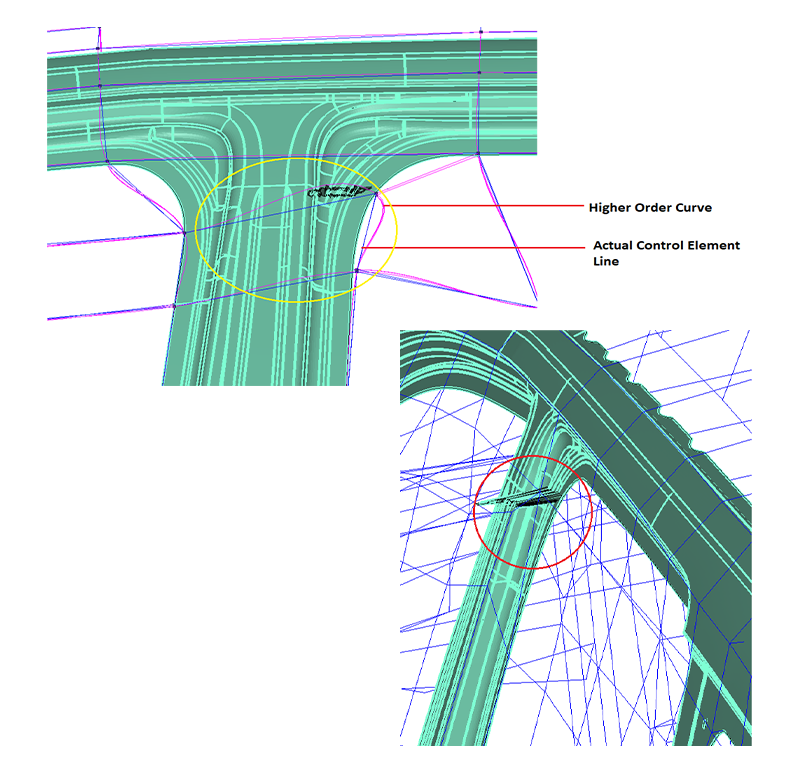

Constraint-Controlled Deformation

Maintains part features such as hole diameters, beam straightness, and part outlines during shape changes.

Get a Closer Look at DEP MeshWorks

Get all the details about our CAE platform’s capabilities, technical specifications,
and success stories.

MeshWorks Uniqueness

MeshWorks CAD/CAE Morphing equips engineers with a powerful capability to reshape full-system models or localized regions with high precision and speed. Its feature-based morphing engine enables direct selection and deformation of regions without predefined zones, while preserving critical features and inter-component relationships. Automatic remeshing and connector regeneration ensure models remain simulation-ready throughout the process. With AI/ML-enhanced precision and an intuitive workflow, the Morphing module is ideal for quick geometry changes, performance tuning, or scan-to-simulation workflows.
